Infrared Paint Drying Lamps

IR-X1 and IR-X2 Short Wave Infrared Dryer

IR-X1 short wave infrared dryer with one cassette, 230 V

Low cost single IR lamp with reduced features compared to IRB range – special price available for single orders for 18 lamps.

IR-X2 short wave infrared dryer with two cassettes, 230 V

Low cost twin IR lamp with reduced features compared to IRB range – special price available for single orders for 18 lamps.

Fast drying times and UNBEATABLE PRICE PERFORMANCE RATIO

The mobile, short-wave infrared dryers IR-X1 and IR-X2 convince with fast drying times and an outstanding price-performance ratio.

Equipped with a timer and adjustable drying intensity (IR-X2 only), both dryers offer the highest quality in their price segment.

Unlike medium- or long-wave infrared radiation, short-wave infrared radiation penetrates the coating and thus heats it from the inside out. Complete sealing of the paint surface with wet paint layers still underneath is effectively prevented.

This leads to a perfect drying result and prevents painting problems such as such as "boiling" and "biting".

[pic] Control panel:

IR-X2 with timer and adjustable drying intensity.
Each cassette can be switched on individually.

TECHNICAL DATA

IR-X information PDF

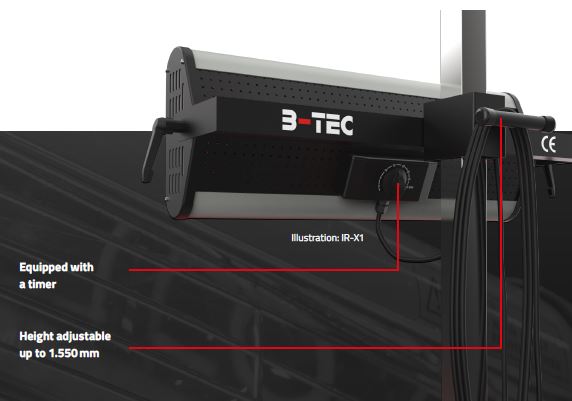

IR-X1

  • Product number 10001436
  • Shortest drying times
  • Works with 230 V, 1,020 watts
  • High flexibility due to 10 m supply cable
  • Timer switch
  • Easy to manoeuvre due to castors
  • Curing area: approx. 600 × 400 mm
  • Optional: protective cover
  • Dimensions (L × W × H): 700 × 580 × 1,550 mm

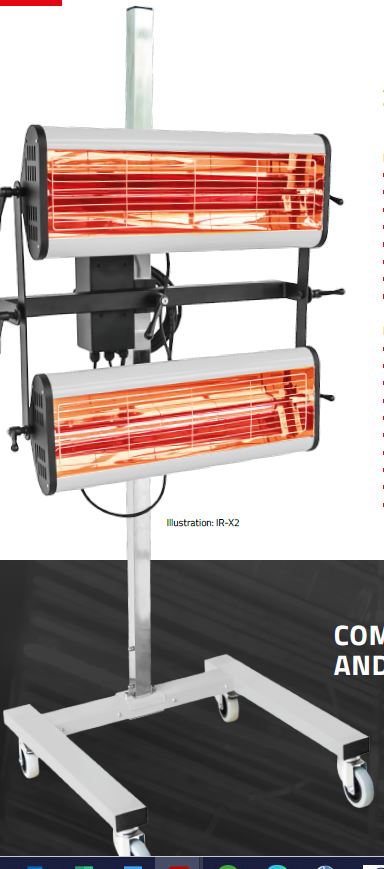

IR-X2

  • Product number 10001437
  • Shortest drying times
  • Works with 230 V, 2,040 watts
  • High flexibility due to 10 m supply cable
  • Each cassette can be switched on individually
  • Timer switch
  • Adjustable drying intensity
  • Easy to manoeuvre due to castors
  • Curing area: approx. 600 × 800 mm
  • Optional: protective cover
  • Dimensions (L × W × H): 700 × 580 × 1,550 mm

Enquire now about the IR-X1 and IR-X2 Short Wave Infrared Dryer

Download the IR-X information PDF (6.4Mb)
